Data Interpolation and Imputation

This tutorial demonstrates data-wrangler’s capabilities for handling missing data through interpolation and imputation techniques. These are essential for cleaning real-world datasets.

Overview

Data-wrangler provides several approaches for handling missing data:

• Interpolation: Fill missing values using mathematical interpolation methods

• Model-based imputation: Use machine learning models to predict missing values

• Statistical imputation: Fill with statistical measures (mean, median, mode)

• Custom imputation: Define your own missing data handling strategies

Let’s explore these techniques with practical examples.

import datawrangler as dw
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from datawrangler.decorate import funnel, interpolate

Interpolation with @interpolate

The @interpolate decorator cleans missing values (NaN) out of the data before your function runs. You control it at call time with the interp_kwargs keyword. Passing interp_kwargs={'method': 'linear'} fills gaps by linear interpolation (any method supported by pandas.DataFrame.interpolate works).

# Build a small signal and knock some values out
np.random.seed(0)
x = np.linspace(0, 4 * np.pi, 24)
signal = np.sin(x)

data = pd.DataFrame({'a': signal, 'b': np.cos(x), 'c': signal + np.random.randn(24) * 0.1})
data.loc[[3, 4, 5], 'a'] = np.nan
data.loc[[10, 11], 'b'] = np.nan
data.loc[[17], 'c'] = np.nan
print(f'Missing values before cleaning: {int(data.isna().sum().sum())}')
data.head(8)

Missing values before cleaning: 6

	a	b	c
0	0.000000	1.000000	0.176405
1	0.519584	0.854419	0.559600
2	0.887885	0.460065	0.985759
3	NaN	-0.068242	1.221758
4	NaN	-0.576680	1.003726
5	NaN	-0.917211	0.300673
6	-0.136167	-0.990686	-0.041158
7	-0.631088	-0.775711	-0.646224

from datawrangler.decorate import interpolate

@interpolate
def clean(df):
    """Return the data unchanged; @interpolate fills the gaps before we ever see it."""
    return df

# Linear interpolation
interpolated = clean(data, interp_kwargs={'method': 'linear'})
print(f'Missing values after linear interpolation: {int(interpolated.isna().sum().sum())}')
interpolated.head(8)

Missing values after linear interpolation: 0

	a	b	c
0	0.000000	1.000000	0.176405
1	0.519584	0.854419	0.559600
2	0.887885	0.460065	0.985759
3	0.631872	-0.068242	1.221758
4	0.375859	-0.576680	1.003726
5	0.119846	-0.917211	0.300673
6	-0.136167	-0.990686	-0.041158
7	-0.631088	-0.775711	-0.646224

Model-based imputation

Instead of interpolating along each column, you can impute missing entries with a scikit-learn model that learns from the relationships between columns. Pass an impute_kwargs dictionary (nested inside interp_kwargs) naming the model, e.g. IterativeImputer, KNNImputer, or SimpleImputer.

# Iterative imputation: model each column from the others
iterative = clean(data, interp_kwargs={'impute_kwargs': {'model': 'IterativeImputer'}})
print(f'Missing values after IterativeImputer: {int(iterative.isna().sum().sum())}')

# Simple imputation: fill each column with its mean (see config.ini for the default strategy)
simple = clean(data, interp_kwargs={'impute_kwargs': {'model': 'SimpleImputer'}})
print(f'Missing values after SimpleImputer:    {int(simple.isna().sum().sum())}')
iterative.head(8)

Missing values after IterativeImputer: 0
Missing values after SimpleImputer:    0

	a	b	c
0	0.000000	1.000000	0.176405
1	0.519584	0.854419	0.559600
2	0.887885	0.460065	0.985759
3	1.102661	-0.068242	1.221758
4	0.899463	-0.576680	1.003726
5	0.243019	-0.917211	0.300673
6	-0.136167	-0.990686	-0.041158
7	-0.631088	-0.775711	-0.646224

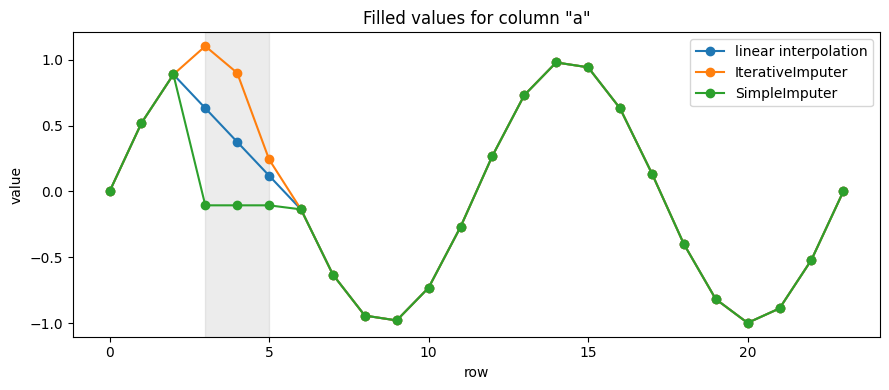

Comparing the approaches

Interpolation uses each column’s own trend, while imputation models relationships across columns. Plotting the filled values for column a shows how the strategies differ where the data were missing (rows 3-5).

missing_rows = [3, 4, 5]
comparison = pd.DataFrame({
    'linear interpolation': interpolated['a'],
    'IterativeImputer': iterative['a'],
    'SimpleImputer': simple['a'],
})
print('Values filled in for the missing rows of column "a":')
print(comparison.loc[missing_rows])

ax = comparison.plot(marker='o', figsize=(9, 4), title='Filled values for column "a"')
ax.axvspan(missing_rows[0], missing_rows[-1], alpha=0.15, color='gray')
ax.set_xlabel('row')
ax.set_ylabel('value')
plt.tight_layout()
plt.show()

Values filled in for the missing rows of column "a":
   linear interpolation  IterativeImputer  SimpleImputer
3              0.631872          1.102661      -0.105383
4              0.375859          0.899463      -0.105383
5              0.119846          0.243019      -0.105383
